Exploring the Orpho Q DRM 4: A Quad-Voice Powerhouse for Eurorack
If you are looking to inject organic, analog percussion into your Eurorack setup without sacrificing precious rack space, the Orpho Q DRM 4 is a module that demands your attention. Hailing from Berlin’s boutique synth scene, Orpho has built a reputation for specialized drum modules, and the Q DRM 4 (Quad T-Drum) is their latest minimalist masterpiece.
Overview: What is the Q DRM 4?

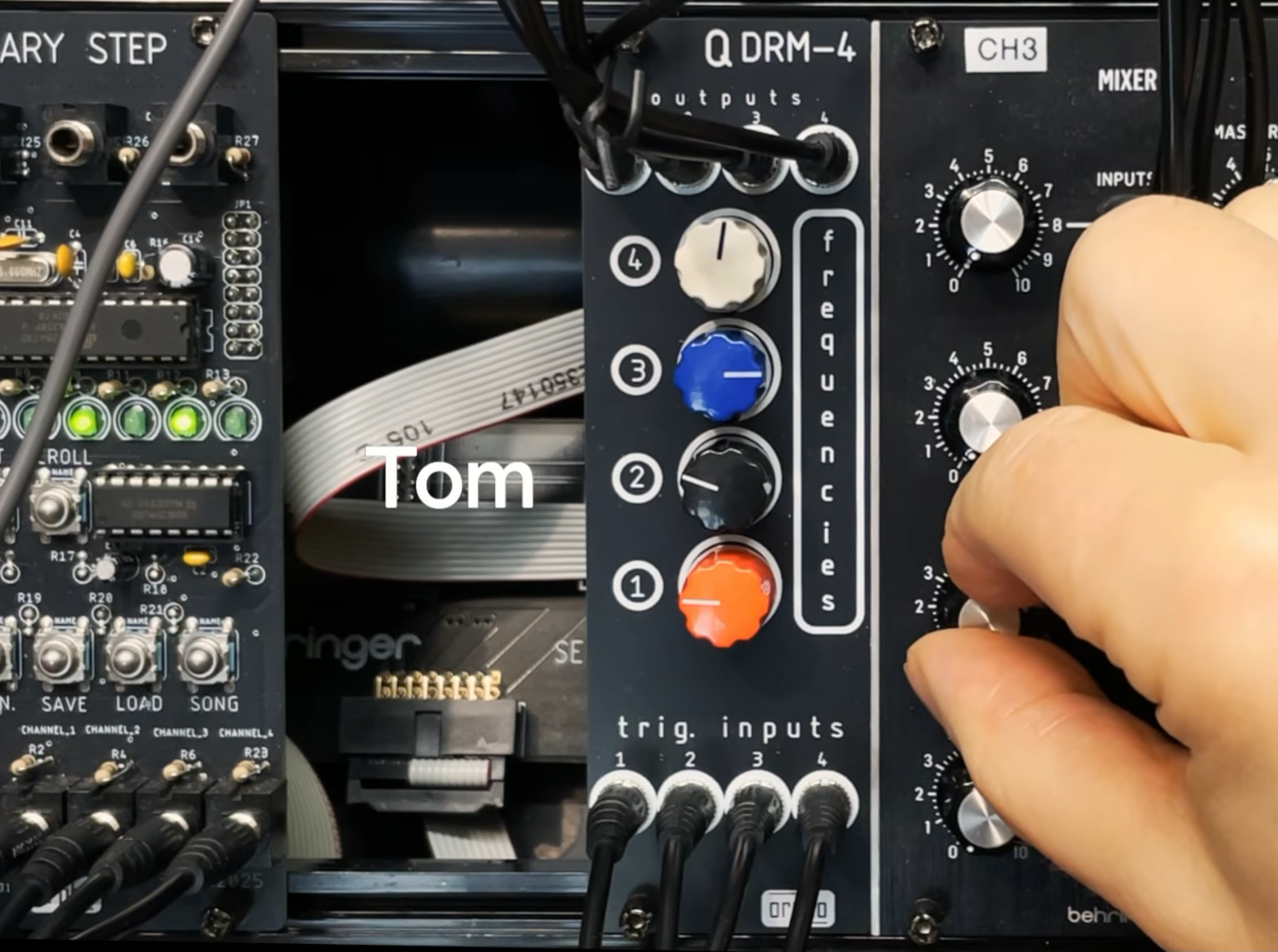

The Orpho Q DRM 4 is an analog Eurorack module featuring four independent “T-Drum” voices. Each voice is built around a Twin-T resonator circuit—a classic architecture known for producing legendary “boing” sounds, deep kicks, and resonant woodblock-style percussion.
While many drum modules focus on complex menus or digital modeling, the Q DRM 4 keeps it strictly analog and tactile. It is designed for musicians who want immediate access to techno toms, electro-percussion, and percussive bass hits. Its compact size makes it a perfect “utility” drum source that can fill out a rhythm section or act as the primary percussive engine in a portable skiff.
Key Features
- Four Independent Voices: Four distinct channels (CH1–CH4), each with its own trigger input and dedicated audio output.
- Twin-T Resonator Architecture: Provides a classic analog response that reacts dynamically to trigger signals.
- Color-Coded Frequency Control: Each channel is tuned to a specific range to cover a full percussive spectrum:
- CH1 (Red): Deep drum sounds and foundation-shaking Bassdrums.
- CH2 (Black): Mid-range Tom frequencies.
- CH3 (Blue): High-mid tones like Bongos, Claves, and Congas.
- CH4 (White): High-frequency Rim-shot character with frequency sweep.
- Individual Outs: Perfect for external processing, allowing you to send your kick to a distortion unit while keeping your toms clean.
- Compact Footprint: At only 8 HP, it packs four voices into a very small space.
- Low Power Consumption: Efficient design that won’t strain your Eurorack power supply.
Technical Specifications
- Width: 8 HP
- Depth: 20 mm (Skiff friendly)
- Power Draw: +12V [40 mA], -12V [50 mA], +5V [0 mA]
- Trigger Threshold: Reliable triggering from >2.5V (Typical 5–10V)
Pricing & Availability
The Orpho Q DRM 4 is priced competitively for a boutique analog module. Please note that Orpho currently specifies sales are restricted to within the European Union.
| Currency | Estimated Price* |
| EUR (€) | €99.00 |
| USD ($) | ~$108.00 |
| GBP (£) | ~£83.00 |
| AUD ($) | ~$165.00 |
*Note: Non-EUR prices are estimates based on current exchange rates and do not include potential import duties or shipping.
Summary Table
| Feature | Details |
| Module Type | Analog Quad Drum Module |
| Synthesis | Twin-T Resonators |
| Voice Count | 4 (Independent) |
| Inputs | 4 x Trigger In |
| Outputs | 4 x Mono Audio Out |
| Controls | 4 x Tone Knobs (Frequency) |
| Best For | Techno, Electro, West-Coast Pings, Percussive FX |
