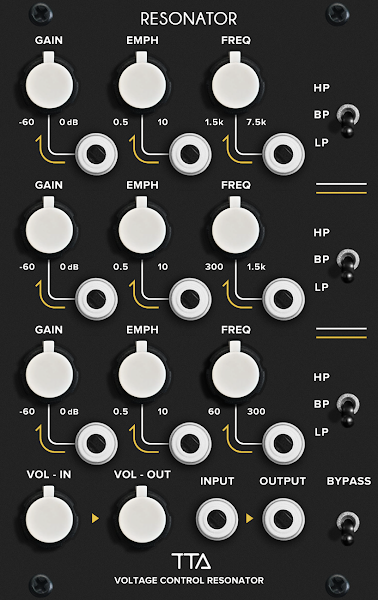

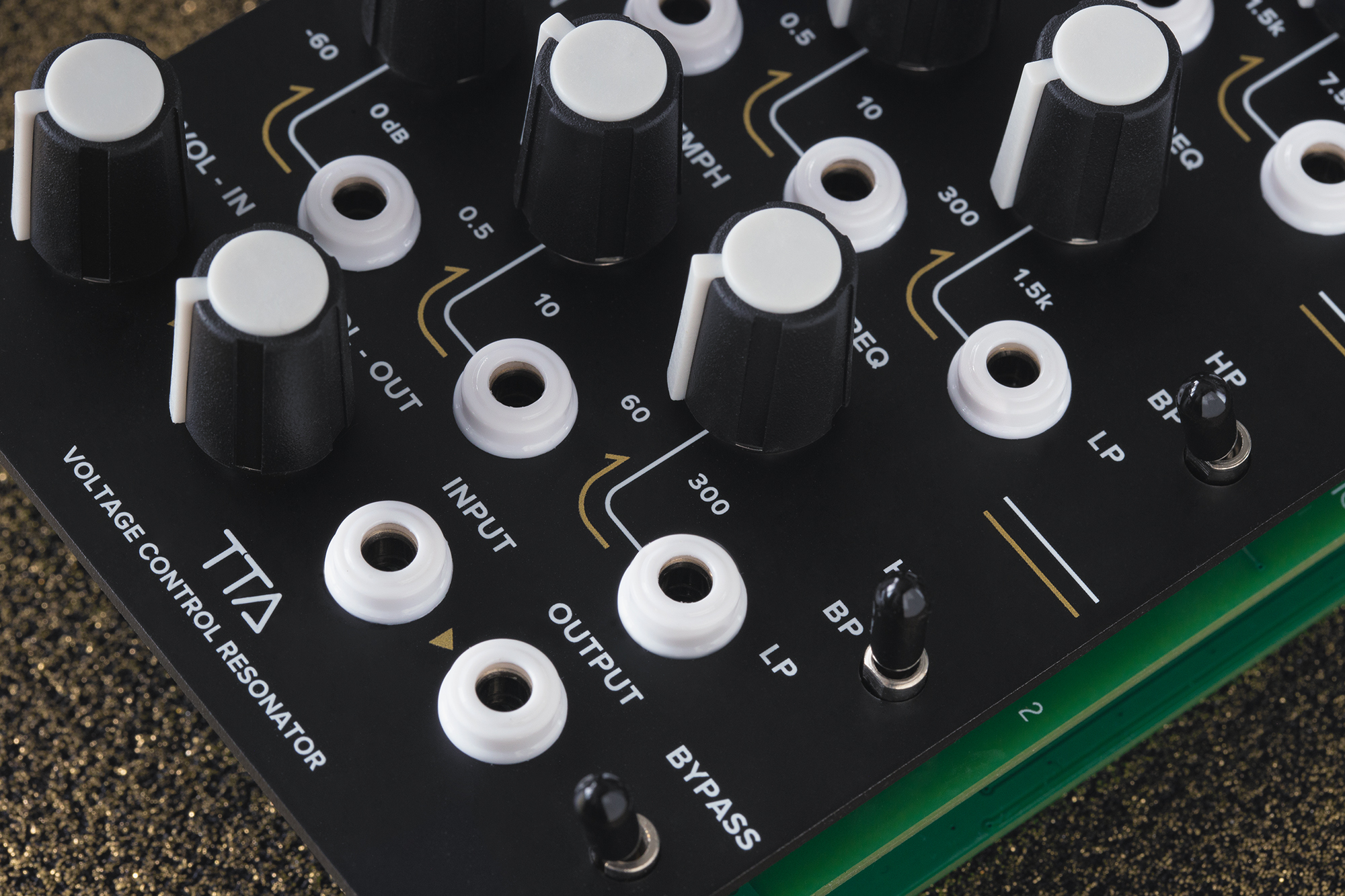

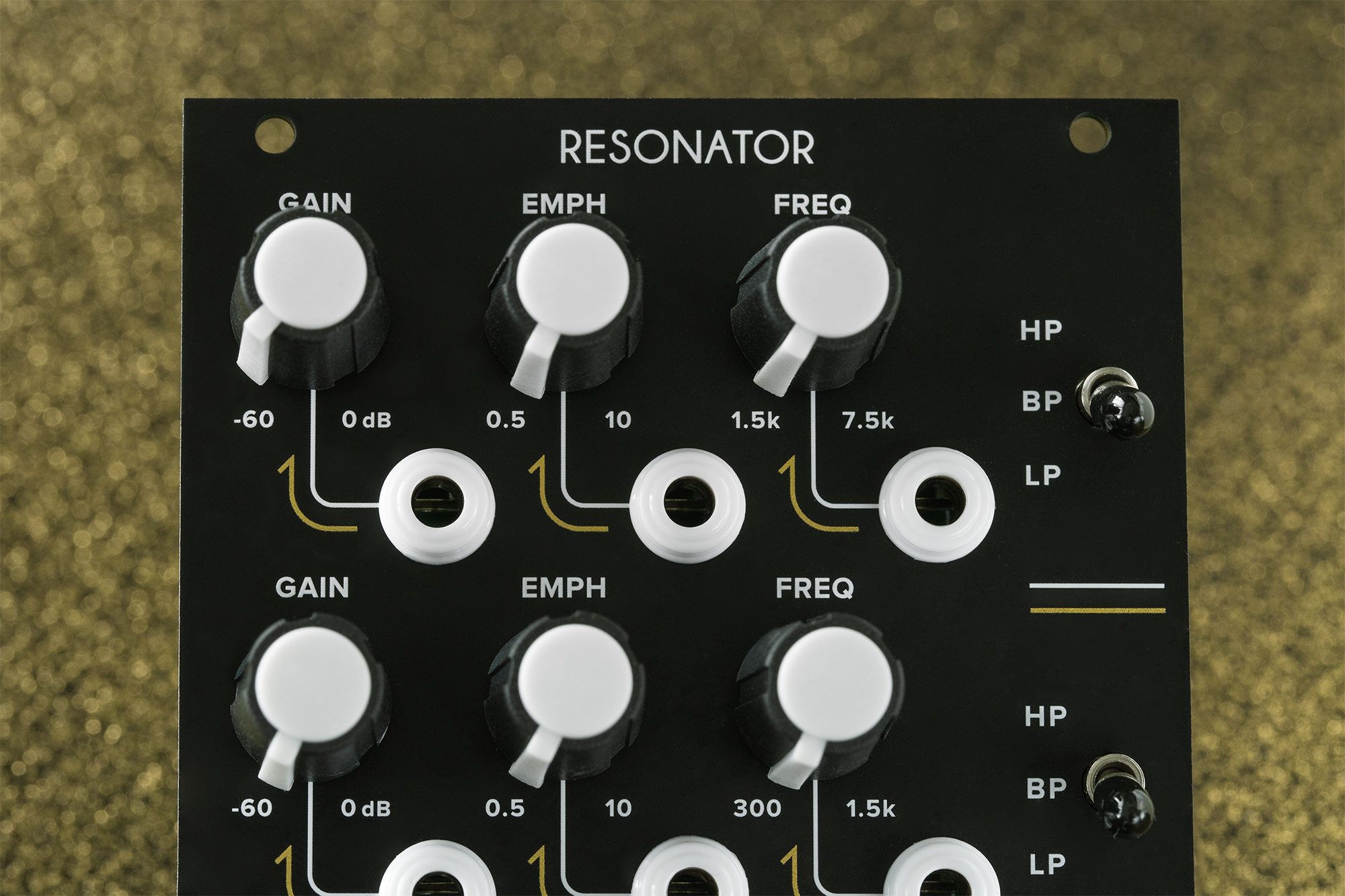

TipTopAudio Resonator
The Tiptop Audio Resonator is an analog Eurorack module that recreates the legendary Polymoog Resonator from 1975. It provides voltage control over every parameter, giving modern modular users the lush, organic filtering and tonal shaping of the original hardware in a compact format. Designed as an end-of-chain effect, it excels with polyphonic patches, drums, samples, and even full mixes.
With selectable frequency ranges, multiple gain stages, emphasis CV with limiter, and a bypass switch, the module delivers deep control and character while maintaining a clean analog signal path—free of digital noise or LED interference.
Key Features
- Faithful recreation of the classic Polymoog Resonator (1975)
- Fully analog circuitry for clean, noise-free performance
- Voltage control over all parameters
- Selectable frequency ranges per resonator band
- Multiple gain stages for dynamic tonal shaping
- Emphasis CV input with built-in limiter
- Bypass switch for quick signal comparison
- Compact 16HP module size
- Ideal for polyphonic setups, samples, drums, and mix processing
Specifications & Summary
| Specification | Details |
|---|---|
| Type | Analog Voltage-Controlled Resonator |
| Inspiration | Based on Polymoog Resonator (1975) |
| Width | 16HP |
| Depth | 40mm |
| Power Consumption | +12V 75mA / -12V 70mA |
| CV Inputs | Frequency, Emphasis, Gain |
| Special Features | Selectable frequency range, limiter, bypass |
| Use Cases | End-of-chain effect, drum/synth processing, tonal shaping |
Estimated Prices
| Currency | Price (Approx.) |
|---|---|
| USD | $199 |
| EUR | €189 |
| GBP | £165 |
| AUD | $315 |
Link: https://tiptopaudio.com/resonator/
