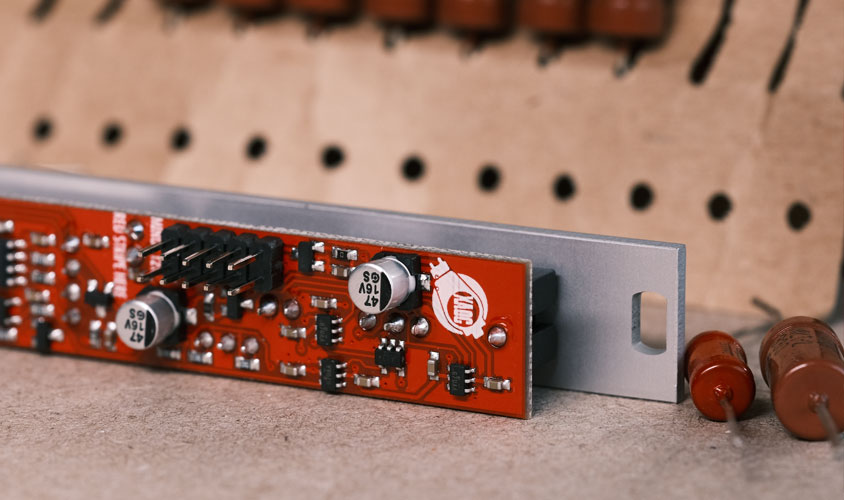

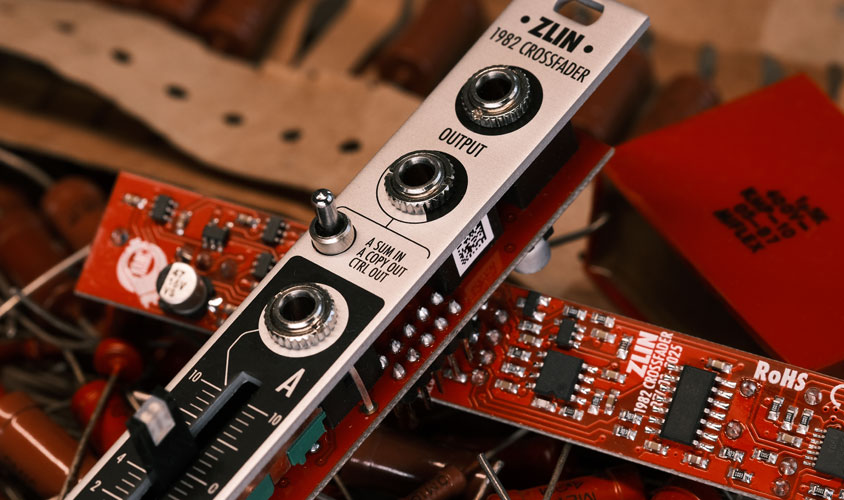

The Xaoc Devices Zlin is a compact Eurorack module that functions as a voltage-controlled crossfader, linear VCA, ducking VCA, and feedback controller. Designed for both audio and CV applications, it enables creative mixing, modulation, and dynamic control within modular systems. Built around a modern high-quality dual VCA chip, it offers low noise, wide dynamic range, and LED visual feedback.
Features
Voltage and manually controlled crossfader
Linear, DC-coupled VCA with drone and duck functions
Feedback controller mode
LED-lit slider for mix indication
AUX jack with three selectable patching functions
Reverse power protection
Compact: 3HP width, 32mm depth
Current draw: +25mA / -25mA
Summary Table
Specification
Description
Type
Crossfader / VCA Utility Module
Functions
Audio & CV crossfade, drone VCA, ducking, feedback control
